    Default Dr Tweak's 3SGTE into ST Swap Adventure

    This thread covers some unusual troubles along with the solutions to swapping a 3SGTE into a '97 ST. I tried to followup on all of the different problems, but feel free to ask questions.

    This first post is a summary of everything that happened, and here is the list of all the threads in reference to the swap.
    ------------------------------
    http://www.celicatech.com/forums/showthread.php?t=8402
    http://www.celicatech.com/forums/showthread.php?t=8819
    http://www.celicatech.com/forums/showthread.php?t=8615
    http://www.celicatech.com/forums/showthread.php?t=8959
    http://www.celicatech.com/forums/showthread.php?t=8753
    http://www.celicatech.com/forums/showthread.php?t=8780
    http://www.celicatech.com/forums/showthread.php?t=8389
    http://www.celicatech.com/forums/showthread.php?t=8067
    http://www.celicatech.com/forums/showthread.php?t=9142
    http://www.celicatech.com/forums/sho...d.php?p=101915
    -------------------------------

    Background info: This car is a '97 Celica ST automatic, the car was converted to 5-speed and got the 3SGTE using a GT tranny. For the entire swap writup please visit www.phoenixtuning.com and www.northeasterntuners.com.

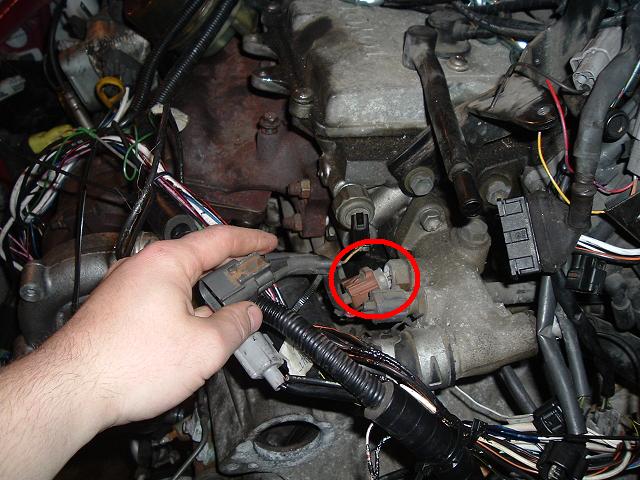

    The first problem that I ran into was these two broken parts. First is the cold start injector switch:



    Which I found a replacement for from another car, and the Power Steering Idle-up sensor:



    Where you can see the two nipples that the vacuum lines go to are broken. I replaced this part with one from a 4AFE Corolla PS Pump which fit perfectly.

    Okay, so the next problem I had was trying to locate the "FC" (fuel cut wire, the one that shuts the fuel pump off when the engine is not running, not the one that cuts fuel when boost gets too high which is handled by a different sensor). The engine I had was a '92 or newer, but the wire was not in the place it was supposed to be. Finally I figured out what happened: when the engine importer sent us the engine, they forgot to include the third ECU plug (the one that has wires going to the chassis, incluiding the FC wire). So we called them up and they promptly sent us the plug, no problem. The thing is, they sent us the plug from a '90 era 3SGTE ECU, so the FC wire wasn't on it, and that's why I was going nuts trying to find it. Once I figured that out I just had to put a pin in that spot... but it gets better

    The next problem was that the engine wouldn't start, all the wiring was done and it was just right. Here's my original post:

    Quote Originally Posted by Dr Tweak
    Okay so the 3SGTE swap here is all wired up and it's been primed, cranks over great, but it won't start. There is no tach readout when cranking, and the diagnostics threw a code 12 (missing tach signal from distributor). I checked and double-checked the wiring for the STA wire at the ECU and it's fine. I checked the wires for the distributor to the ECU they are all fine, check the resistance and that checks out.

    Tomorrow I'm going to see if I get a signal at the STA pin on the harness when cranking, that's one thing I didn't check. The other thing is, from the point that that the stock harness ends (it needs to be extended about 30" as I'm sure you know) to the ECU I have regular (unshielded) wire going the rest of the way to the ECU. In the stock harness there are several inches of unshielded wire going to the ECU so I thought it would be fine, but could this be the cause of the problem?

    Has anyone else had this problem and if so what was the cause?
    So for some reason the ECU wasn't reading a signal from the distributor (cam position signal) so it wouldn't start. I tried EVERYTHING and tested every last wire. FINALLY I discovered the problem. I had a hunch after figuring out that they had sent me the wrong plug, so I did some research with the part number on the ECU and found that IT WAS A '90 ECU!!! So of course the pin locations on the '90 and '92 harnesses are totally different (well, quite a bit anyway). So it took me a little while of repinning the connectors to match the '90 pinout, and the engine fired up on the first try.

    Okay then next, the engine would start, but it wouldn't stay running. It was like it couldn't keep idle. Here's my original post:

    Quote Originally Posted by Dr Tweak
    Okay, so I figured out that the reason why this engine wouldn't start is because they sent us an earlier year ECU than the engine. So, this morning I repinned the connectors to match the older pinout, and the engine fired right up! Woot! Except...

    Then it died. It will start and run for about 3 seconds and then die. If I hold the throttle open, then it will run fine, so I know that I'm getting spark and fuel and the timing is on. But it won't stay running! It's like the Idle Air Valve isn't letting air through.

    I've done a bunch of tests. First up I ran the diagnostics and got a code 51 which seemed to point to the TPS. Then later on I got codes 24 (intake air temp) and 31, AFM circut. After clearing the codes and trying again, there are now NO codes at all.

    Anyway, I tested out the circuts for the TPS, AFM, and ISC. All of the wiring is correct, I did get a couple unusual readings on a couple things. I'm going through it again right now and taking better notes.

    Everything on the TPS checked out for resistance as well as voltage at the ECU, EXCEPT that when the throttle is open the IDL wire reads 11 volts instead of 5 like the BGB says it should. Everything else is right.

    I'll post the results of the other tests in a little bit as I go through it again.

    Any ideas???

    This is driving me crazy, I've never had this much trouble with a swap before! ARG!
    I spent the whole day doing electrical tests, and then when looking at a diagram I realized that the ISC (idle control valve) takes air in through a tube, which I didn't have hooked up behind the AFM. Once I routed a hose there, it started up and idled perfectly

    Quote Originally Posted by MrWOT




    And here's the pinout for the '90 and the '92 3SGTE:

    Last edited by Dr Tweak; 08-24-2005 at 04:40 AM.
    -Dr Tweak, Toyota engine swap wiring expert extraordinaire

    To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

  2. #2
